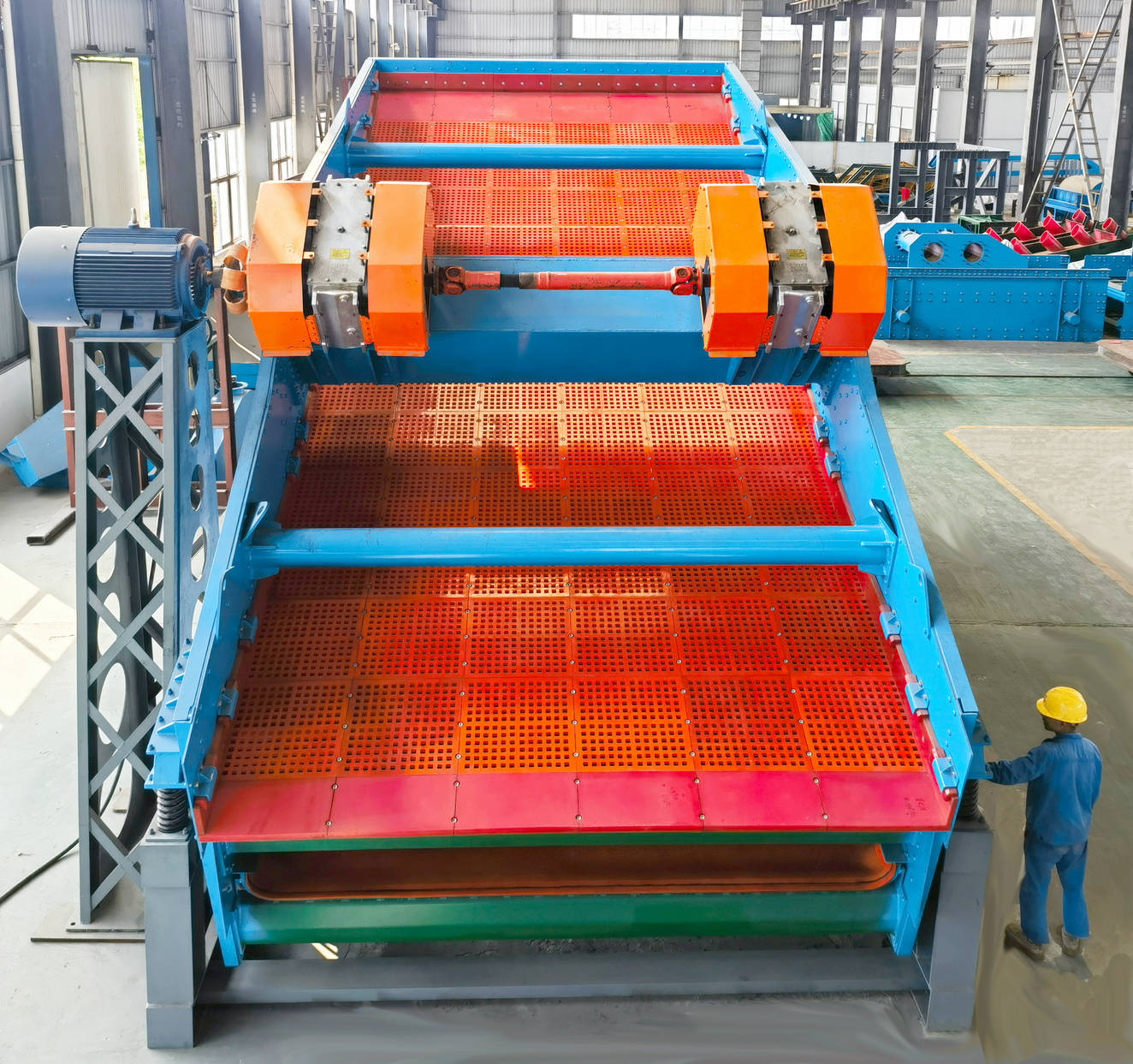

The Banana Tension Screen integrates the principles of equal-thickness screening, linear vibration theory, and sub-resonance of a two-mass system, combining the advantages of both banana screens and tension screens. It is a new type of screening machine with high capacity, high screening efficiency, and anti-clogging features. It is mainly used for screening fine, sticky, and wet materials that are difficult to screen, such as coal grading, desliming, dewatering, and medium removal, and is also suitable for screening and grading other minerals.

Main Features and Advantages of the Product:

1. The screen surface achieves a tension and relaxation movement with an acceleration of up to 50G, easily screening difficult materials without clogging the screen holes.

2. It integrates the advantages of banana screens and tension screens: the feed end allows rapid entry of thin material layers, resulting in high permeability and efficient processing; the discharge end features a low inclination and slow movement, ensuring thorough screening of remaining material and higher screening efficiency.

3. The linear box-type vibrator ensures stable operation, high reliability, and easy maintenance.

4. The patented custom screen surface can withstand a vibration intensity of 50G and 800 cycles per minute of tension and relaxation movement, offering long screen plate life, high screening efficiency, and strong processing capacity.

5. The hollow rubber springs are installed to provide low noise and durable springs.

6. The side "U"-shaped sealing design prevents wear on the side plates and eliminates the mixing of oversize material with undersize material.

7. The wedge-shaped rubber strips are used to secure the screen plates without bolts, allowing for quick and easy installation and removal.

8. With fewer rotating parts, the operation is reliable, maintenance is minimal, and equipment utilization is high.

9. The floating screen frame has adjustable amplitude.
