SPBC series wet high gradient plate magnetic separator It is a new type of high magnetic field equipment independently developed by our company. The design and development of the whole machine integrates physical mechanics, fluid mechanics and magnetics. It has ultra-high magnetic field strength and the highest magnetic field can reach 18000Gs. It can solve the high standard requirements of iron removal for non-metal mineral in the industry, and its super high performance ratio is obviously superior to the vertical ring magnetic separator.
It adopts open-type separation structure, which fundamentally solves the world technical problems of the traditional vertical ring high-gradient magnetic separator, which is easy to clog and serious with materials when processing small granular materials. It is a revolutionary breakthrough in the field of high-gradient magnetic separator, and its performance is even more globally leading.

Applicable materials:
Wet plate magnetic separator is suitable for the purification of various minerals
It is mainly suitable for less than 5 mm size of weak magnetic mineral ore and non-metallic mineral of iron, such as: mica powder, quartz sand, potassium feldspar, nepheline, fluorite, sillimanite, spodumene, kaolin, manganese ore, weak magnetite, pyrrhotite, roasted ore and ilmenite, hematite, limonite and siderite, ilmenite, chromite, wolframite, tantalum niobium, red mud, etc. Can also be used in coal, non - metal mining, building materials and other industries of iron removal operations.

Performance features:Choose high performance nd-fe-b magnetic material, unique plane magnetic circuit design, more reasonable magnetic field.
Magnetic complex magnetic system, multi - magnetic pole structure, high magnetic intensity, gradient.
The effective magnetic area is large, the time of separation is long, the effect is good.
Integrate the theory of physical mechanics, magnetism and gravity to complete the work together.
The magnetic plate angle can be adjusted, and the belt speed can be adjusted to adapt to the material with different fluidity.
Equipped with a uniform feeding device, automatically clean up the magnetic adsorption.
Can be designed according to user requirements, easy to disassemble.
Low energy consumption and easy maintenance.

Main technical parameters:
Model
Indicator
Name
Magnetic plate width
Magnetic plate length
Magnetic field intensity
Bandwidth
Material particle size
Processing power
Power

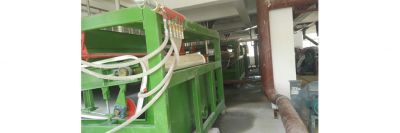

roduct application

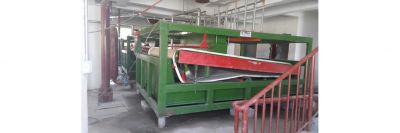

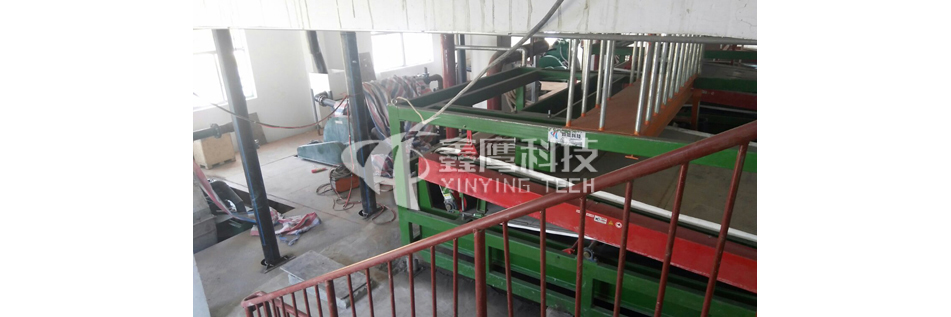

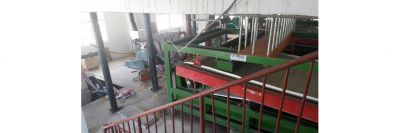

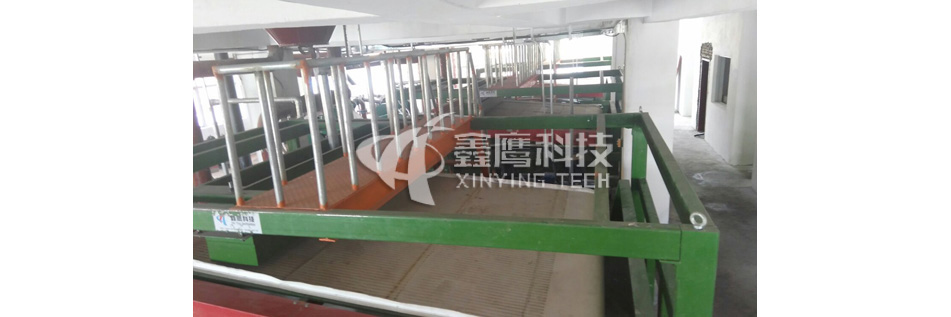

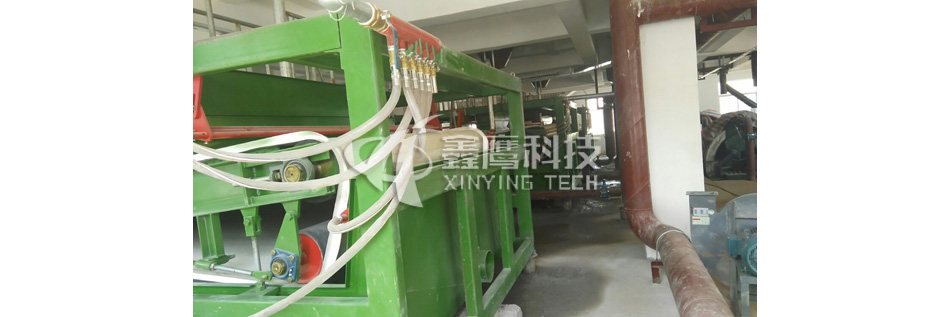

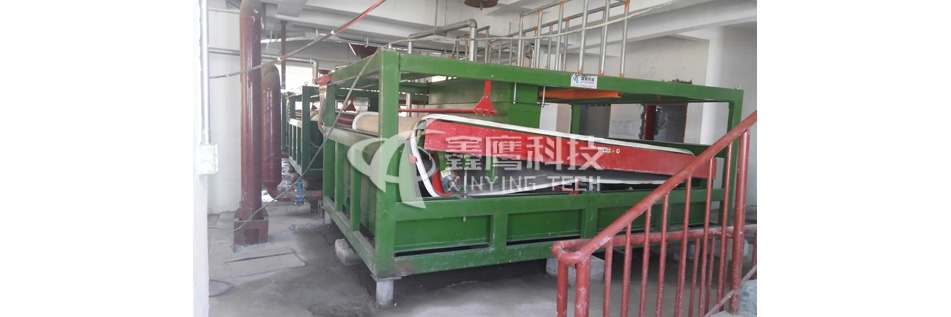

Spot application video


Brand strength
Xinying technology is committed to China's leading enterprise in the field of mineral processing equipment manufacturing, mainly including laminated high-frequency vibrating fine screen, polyester screen net, linear vibrating dewatering screen, cylinder screen, slag screen, magnetic separator, thickener and providing new type of tailings concentrate dewatering and dry discharge process services. For more information, call the national toll-free service hotline (400-6622-333). Adhering to the tenet of "quality first, technological upgrading, customer first, lifelong service", our company carries out one-stop service for equipment design, manufacturing, installation and debugging, carries out lifelong responsibility for equipment, provides free on-site trial service and operation instruction training, and provides technical services in the production process.

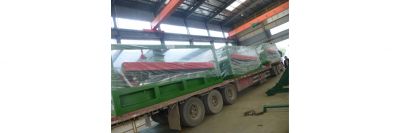

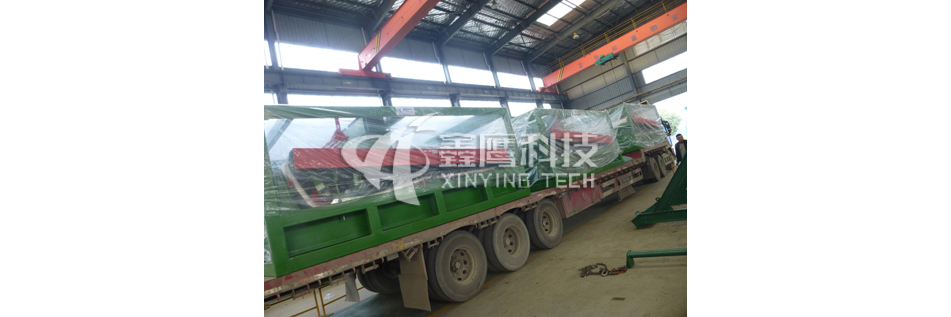

Package product
